KoolAir Marine HVAC Seawater Circulation Coolant Pump With Run Dry Capability
Sign In

TPM1000 (115/230V)

TPM1000 (115/230V)

Description

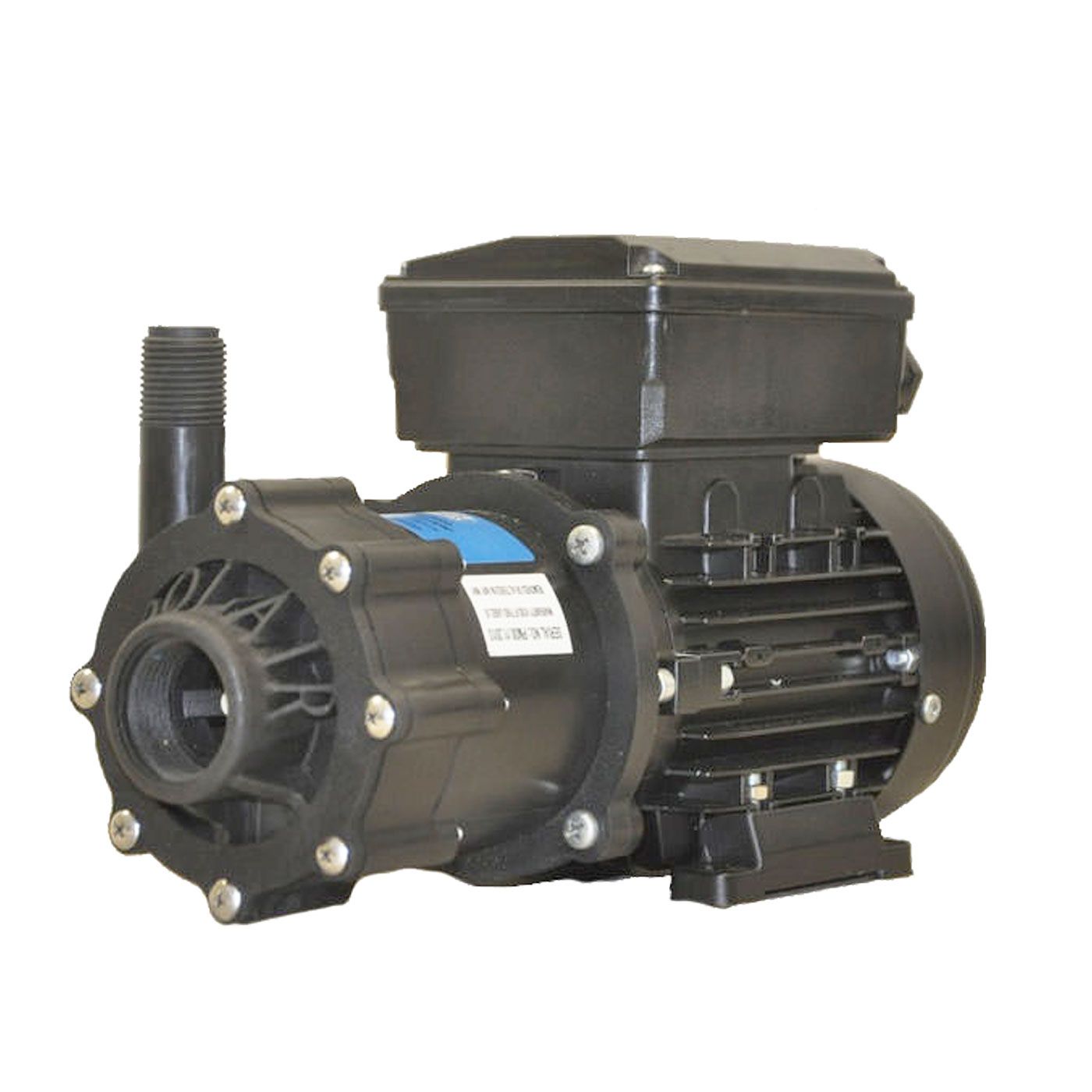

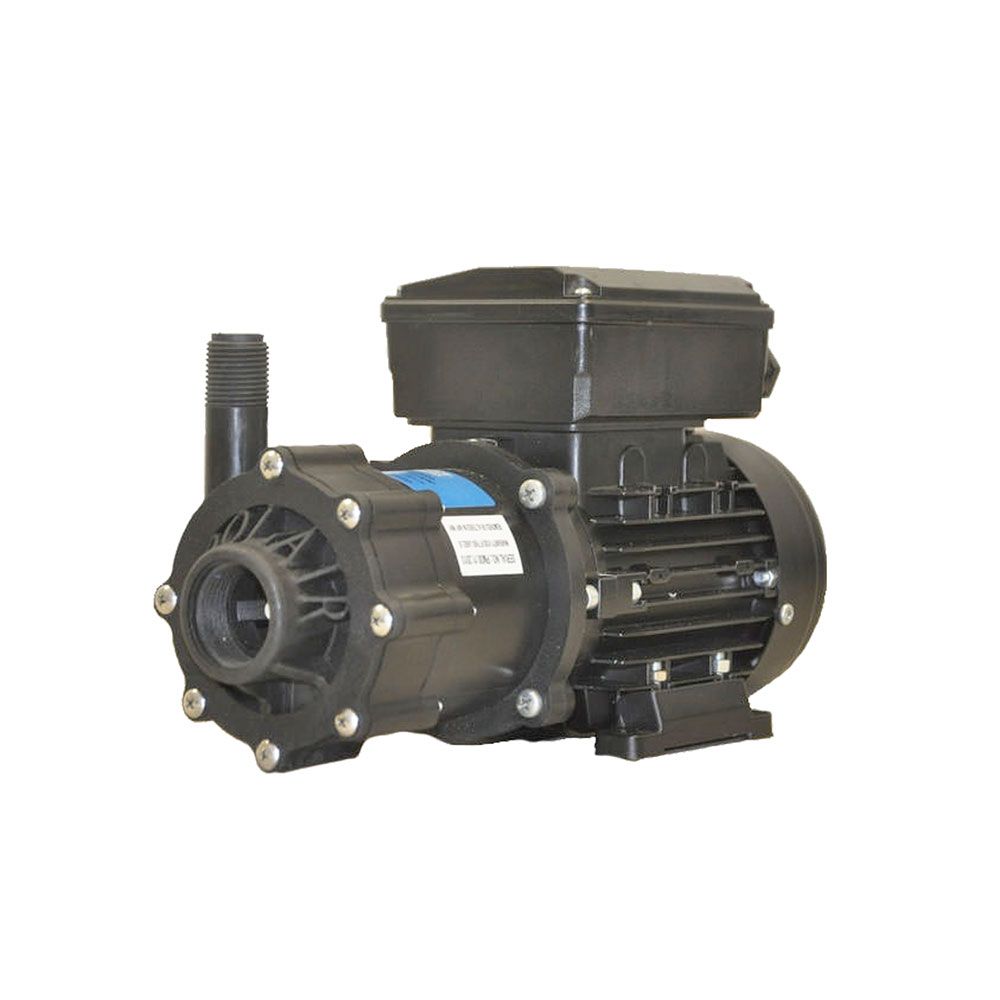

The KoolAir TPM1000 dual 115/230 voltage, TEFC magnetic drive seawater circulation coolant pump is most commonly used for marine air conditioning.

The Koolair TPM1000 is a 115/230 Volt TEFC (Totally Enclosed Fan Cooled Motor Enclosure) model.  Is a sealless centrifugal magnetic drive seawater circulation coolant pump. Model generates a maximum flow of 17 gallons per minute as a result with a maximum head of 27 feet at 11.7 PSI. The TPM1000 is also ISO 8846 Marine Ignition Protected. UPC: 852575006044

Similarly replaces March AC-5C-MD Pump.

1000 GPH (Gallons Per Hour).

$475.00

TPM1000In stock

Additional Information

Product NotesThe KoolAir TPM1000 115/230 Volt Magnetic Drive Pump is most commonly used for marine air conditioning sea water circulation. Replaces March AC-5C-MD 11V & 230V. 1"FPT Inlet 1/2"MPT Outlet, Nylon (Front & rear Housings) Ceramic Shaft and Washers, Ceramic Magnet 17 GPM @ 27 ft Head with Run Dry Protection. 1/8 HP TEFC 115/230 volt 50HZ / 60HZ Non-Submersible Motor.
Weight (LBS)12
Length13.5
Width7
Height9
HP0.125
Hz50/60 Hz
Voltage115/230V
Part NumberTPM1000
Maximum Flow17.2
Heads To (Feet)27 Feet of Head @ 11.7 PSI
Connections / Discharge (Inches)1″ FPT Inlet, 1/2″ MPT Outlet
