KoolAir Pumps

KoolAir Marine HVAC Seawater Circulation Coolant Pump With Run Dry Capability

PM1000 (230V)

PM1000 (230V)


The KoolAir PM1000-230 magnetic drive hvac coolant pump is most commonly used for marine air conditioning seawater circulation. Koolair Pump PM1000-230 Marine Air Conditioning Coolant Pump for Boats, Run Dry Protection, 230V.

Open Drip Proof Motor Enclosure Model; ETL-Certified; UL Recognized; Sturdy 1 Phase 230-Volt (50/60HZ) Motor; Open Air for Complete Moisture Protection; 56” Cord is UL Listed 18/3 Wire

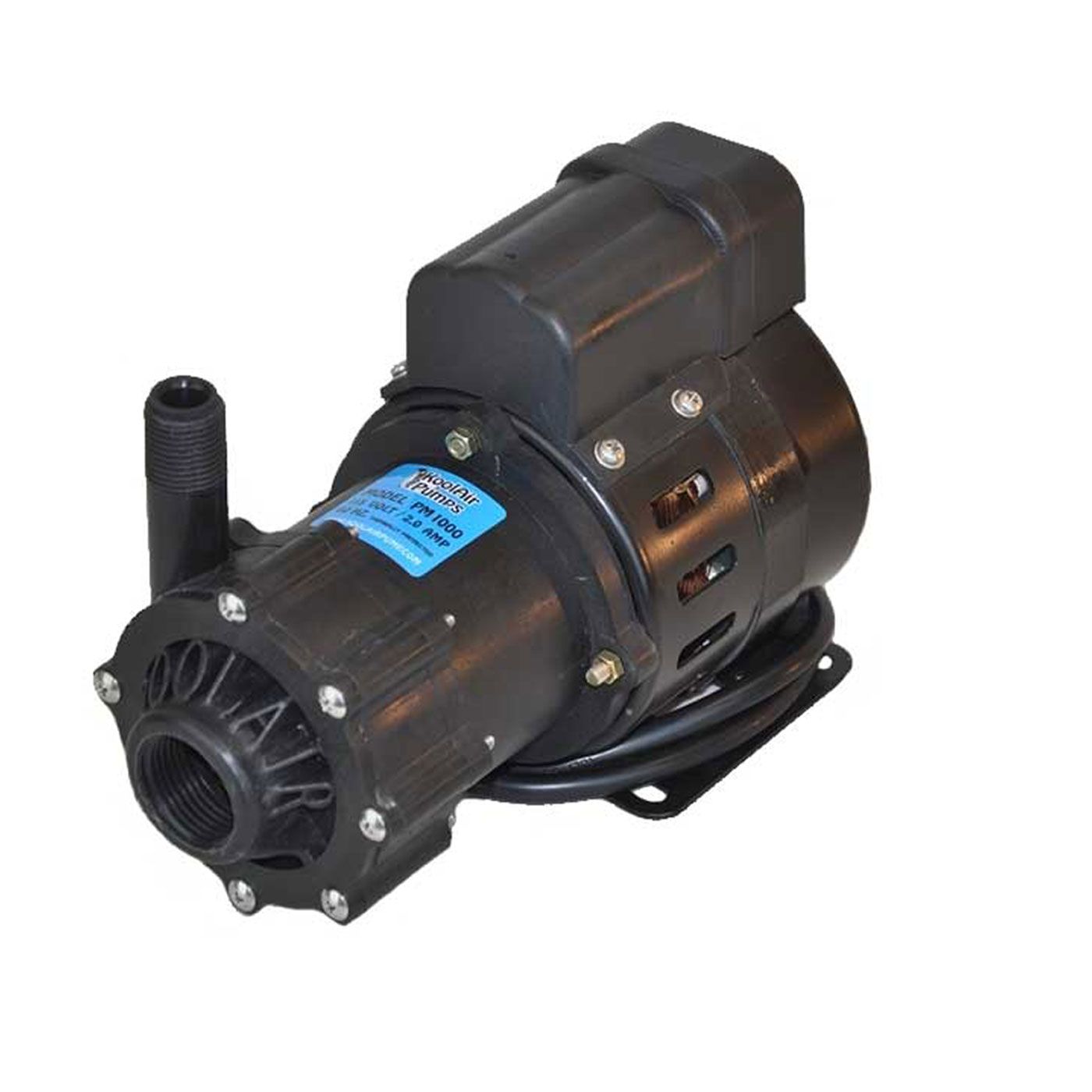

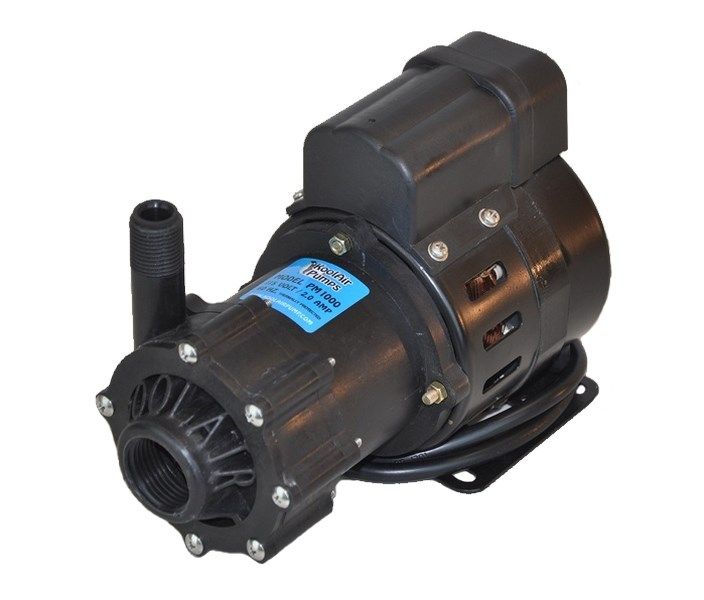

The Koolair PM1000-230 ODP (Open Drip Proof Motor Enclosure Model)  is a sealless centrifugal magnetic drive marine hvac pump.  Series generates a maximum flow of 17.2 gallons per minute with a maximum head of 27 feet at 11.7 PSI.


PM1000 (230V)In stock

Additional Information

Product NotesThe KoolAir PM1000-230 Magnetic Drive Pump is most commonly used for marine air conditioning seawater circulation. Replaces March AC-5C-MD Pump 230V,. 1" FPT Inlet, 1/2" Outlet, 60 Hz, 230V, 1 Phase, 1/8 Hp, 3450 RPM, 17.2 GPM Max Flow, 27 Feet Max Head, 50 PSI Max Internal Pressure.
Weight (LBS)10
Hz50/60 Hz
Part NumberPM1000-230
Maximum Flow17.2 GPM (54.8 LPM)
Heads To (Feet)27 Feet of Head @ 11.7 PSI
Connections / Discharge (Inches)1″ FPT Inlet, 1/2″ MPT Outlet
