Marine HVAC Coolant Pump
PM500 (115V)
Fully submersible 500 GPH marine HVAC coolant pump with run-dry protection. Direct March LC-3CP-MD replacement. ETL listed, ISO 8846. Ships same day.
Drop-In Replacement for March LC-3CP-MD (115V)

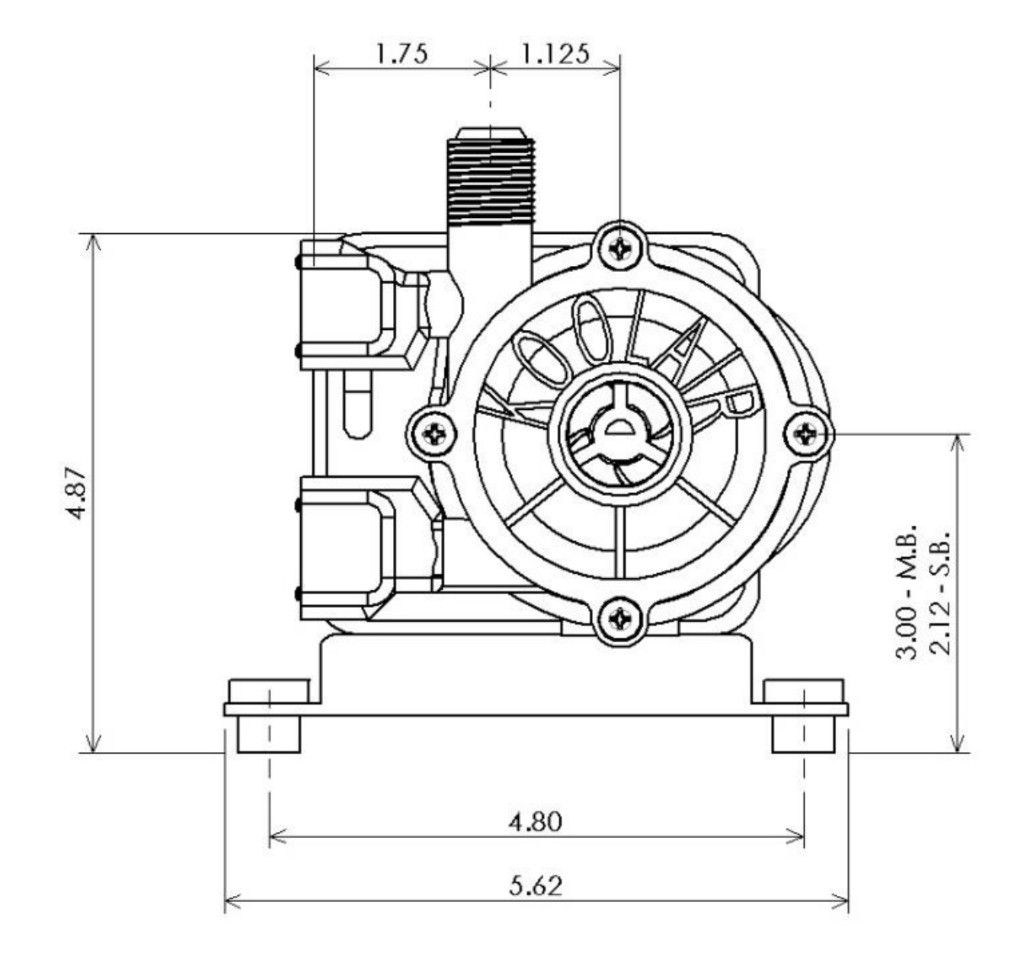

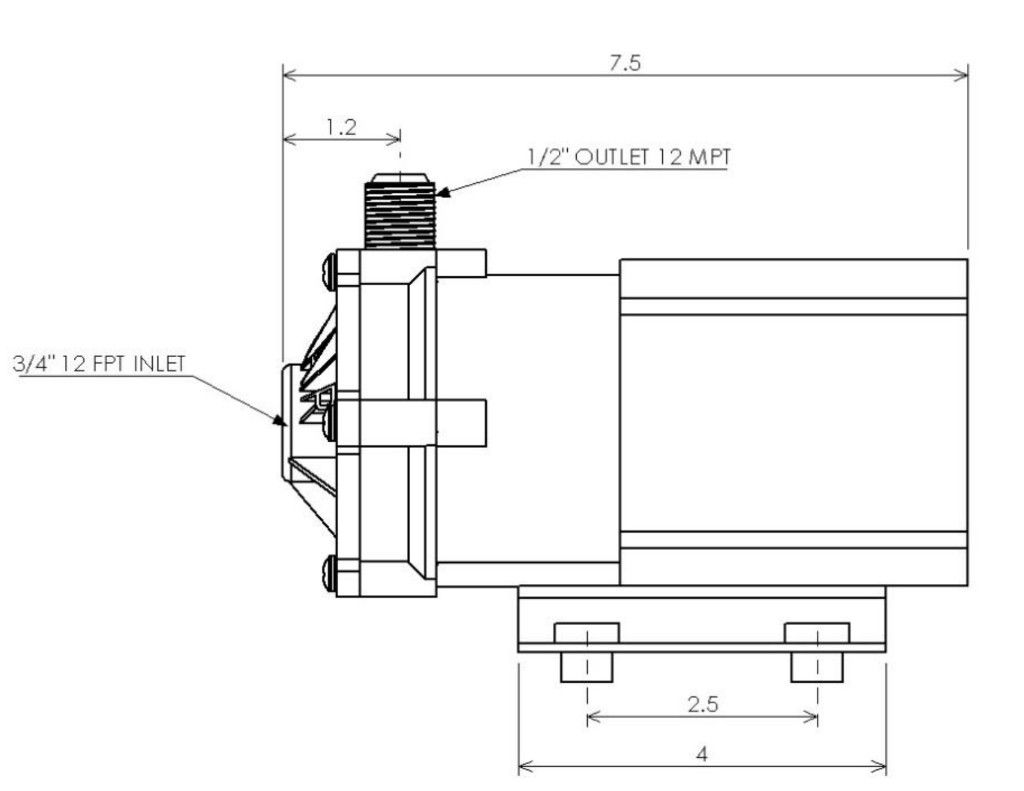

Drop-in compatible. Same mounting pattern, same connections - no modifications needed.
Key Features
- Run-dry protection
- Thermal overload protection
- ISO 8846 ignition protected
- Fully submersible
- Sealless magnetic drive
- Epoxy-encapsulated motor
Technical Specifications
Performance
Electrical
Physical
Connections
Identification
Overview

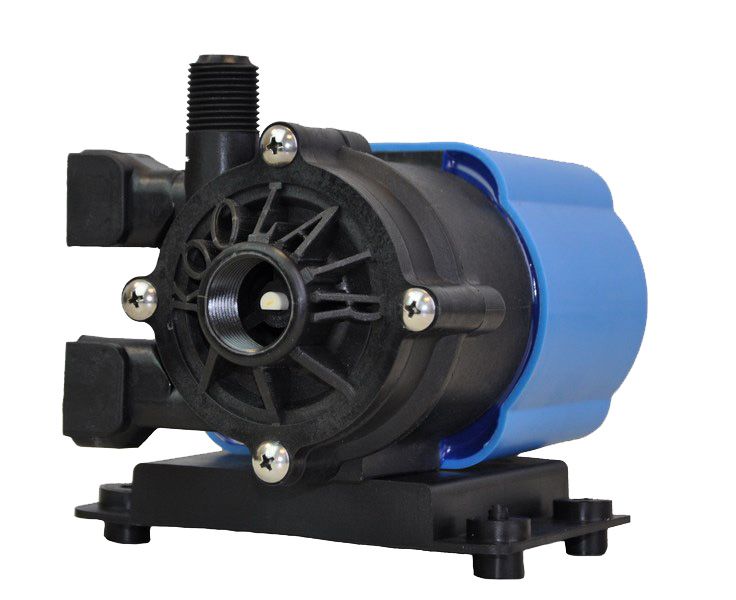

The KoolAir PM500-115V is a fully submersible 500 GPH magnetic drive seawater pump designed for marine air conditioning and fountain applications. Its sealless design eliminates shaft seal leaks and maintenance.
Key Benefits
- Run-Dry Protection - Carbon bushing design allows the pump to survive clogged strainers without damage.
- Thermal Overload Protection - Automatic shutoff prevents motor burnout.
- Fully Submersible - Epoxy-encapsulated motor rated for below-waterline installation.
- ISO 8846 Ignition Protected - Safe for use in enclosed engine compartments.
- Sealless Magnetic Drive - No shaft seal to leak or replace.
Drop-In Replacement
Directly replaces the March LC-3CP-MD (115V). Same mounting pattern, same connections - no modifications needed.
Applications
PM500 (115V) Service & Maintenance Videos
Watch step-by-step guides for servicing the PM500 (115V). These videos cover complete disassembly and reassembly procedures to help you maintain peak pump performance.
How to Disassemble a PM500 KoolAir Pump
How to Reassemble a PM500 KoolAir Pump
