KoolAir Marine HVAC Seawater Circulation Coolant Pump With Run Dry Capability
Sign In

PM500 (230V)

PM500 (230V)

Description

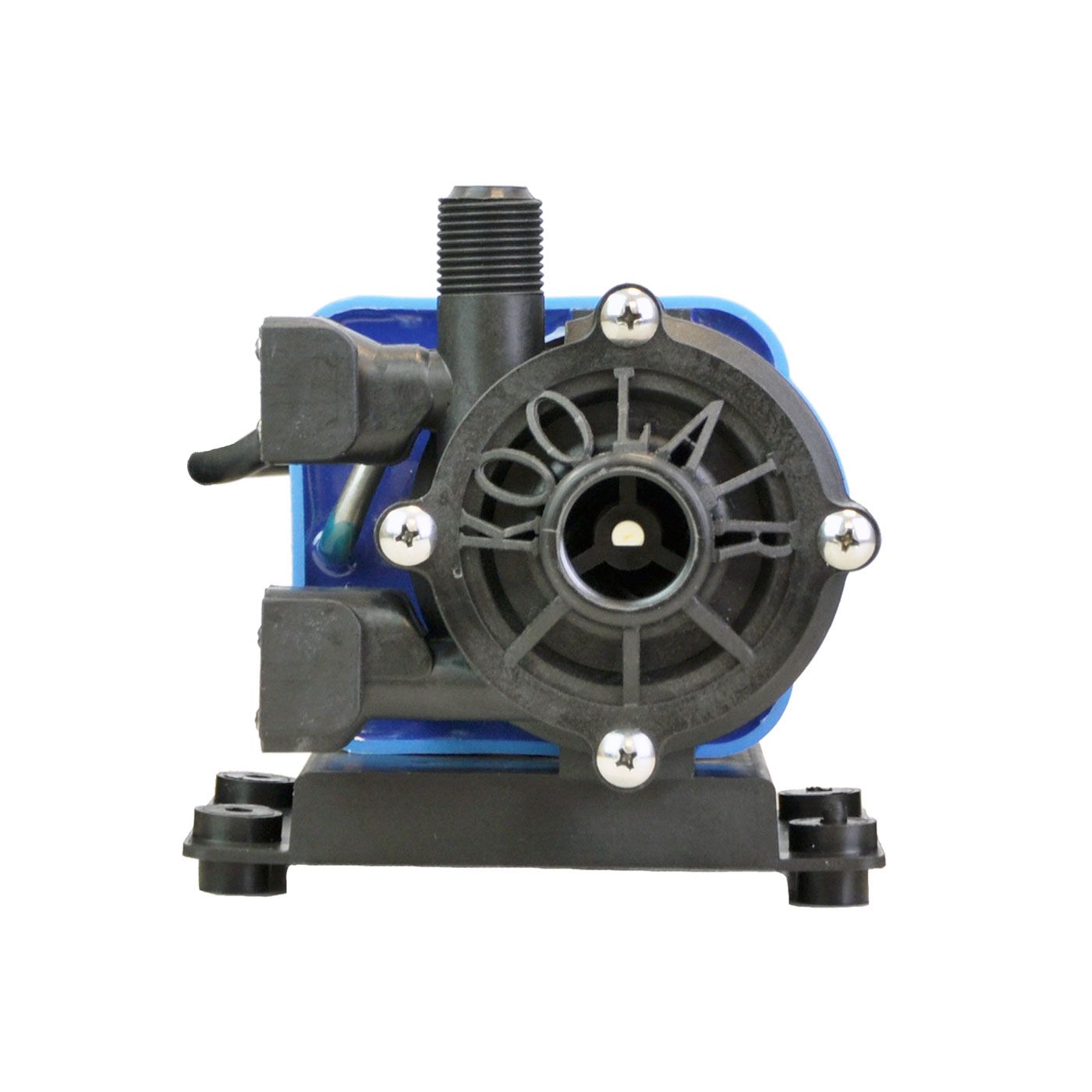

The KoolAir PM500-230 is a fully submersible 500 GPH magnetic drive seawater circulation pump most commonly used for marine air conditioning and fountain displays.

The PM500-230 is a completely submersible sealless centrifugal magnetic drive marine hvac pump. Model generates a maximum flow of 8.5 gallons per minute and furthermore a maximum head of 19 feet at 25 PSI. The PM500-230 is also ISO 8846 Marine Ignition Protected. Replaces March LC-3CP-MD Pump with a 230 volt motor. 500 GPH (Gallons Per Hour). ETl Listed | UL Listed | NMMA, USCG and SAE J1171:2016. UPC: 852575006013

$295.00

PM500 (230V)In stock

Additional Information

Product Notes KoolAir PM500-230 Magnetic Drive Pump is most commonly used for marine air conditioning and fountains. Run Dry Protection! Replaces March LC-3CP-MD Pump 230V, 3/4" FPT Inlet, 1/2" MPT Outlet, 60 Hz, 230V, 1 Phase, 1/20 HP, 3450 RPM, 8.6 GPM Max Flow, 19 Feet Max Head, 25 PSI Max Internal Pressure.
Weight (LBS)8.5
Length9
Width8.25
Height6.75
HP0.125
Voltage230V
Part NumberPM500-230
Model NumberMarch LC-3CP-MD Pump Replacement
Maximum Flow8.5 GPM / 32.2 LPM
Heads To (Feet)19
Connections / Discharge (Inches)3/4" FPT Inlet, 1/2" MPT Outlet
